Overview of Wall Thickness Measurement

Wall thickness measurement is a critical practice that enables industries to assess the thickness of walls and surfaces in various equipment and structures. By employing advanced measurement techniques, companies can proactively detect thinning or corrosion, ensuring the integrity and safety of critical assets. Read on to know more about the fundamentals, methods, and benefits of wall thickness measurement.

What Is Wall Thickness Measurement?

Wall thickness measurement is a widely employed technique that assesses the thickness, integrity, and physical properties of materials using high-frequency sound waves. It plays a crucial role in product testing and quality control, ensuring compliance with desired standards.

How Do You Measure Wall Thickness?

To conduct wall thickness measurements, including pitting assessments (both external and internal), two techniques can be utilized: the tangential technique and the double wall technique. These methods enable accurate determination of material thickness and identification of any pitting-related issues.

1. Tangential Radiographic Technique

The Tangential technique is a method used for measuring wall thickness. It involves placing the probe or sensor in direct contact with the surface of the material being inspected. By positioning the probe at a specific angle, this technique enables accurate measurement of the material’s thickness and the detection of any irregularities or anomalies.

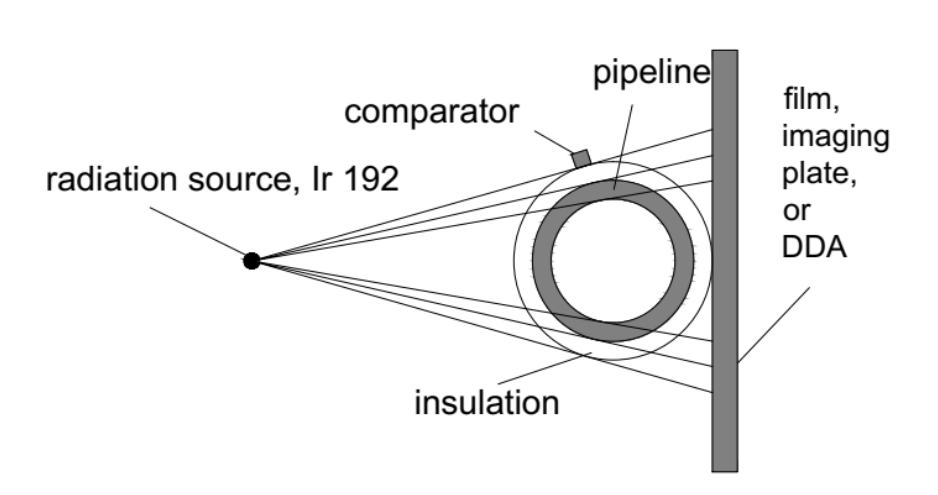

Figure 1. Tangential Radiographic Inspection Set-Up. Adapted from “Utilization and Validation of Tangential Radiographic Technique in Wall Thickness Measurement,” by M. F. H. Chowdhury, and M. A. Habib, 2019. Copyright 2019 by Nuclear Science and Applications.

The TRT method provides an indirect approach for measuring wall thickness. To ensure accurate measurements, calibration is necessary. In this technique, a reference block with known dimensions is affixed to the test object’s surface during exposure. The resulting radiographic image is then calibrated based on the dimensions of the reference block.

By referencing this calibrated image, the wall thickness of the pipe can be accurately determined. This approach enhances measurement precision and enables effective evaluation of wall thickness using radiographic imaging.

2. Double Wall Technique

The Double Wall Technique is a method used for measuring wall thickness. It involves inserting the probe or sensor between two parallel walls to measure the thickness between them. This technique is particularly useful when direct access to both sides of the material is not possible.

By using the Double Wall Technique, accurate measurements of wall thickness can be obtained, providing valuable information about the structural integrity of the material. This technique is widely applied in various industries, such as manufacturing, construction, and maintenance, to ensure the quality and safety of structural components.

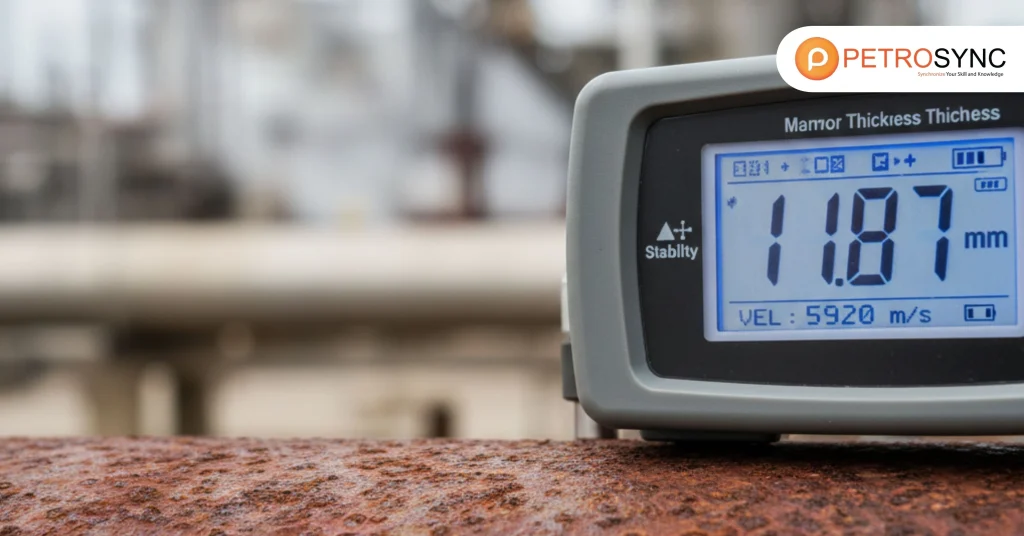

3. Ultrasonic Testing (UT)

Ultrasonic Testing (UT) is a widely used technique for measuring wall thickness. It works by sending high-frequency sound waves into the material being examined. These sound waves travel through the material and bounce back when they encounter the opposite wall.

By measuring the time it takes for the sound waves to return, we can accurately determine the thickness of the wall. UT is applicable to different materials like metals, plastics, and composites, making it a versatile and valuable method for measuring wall thickness in industries such as manufacturing, construction, and maintenance.

4. Calipers

Calipers are a commonly used tool for measuring wall thickness. They consist of two arms with pointed ends that can be adjusted to fit around the material being measured. By closing the arms around the material and reading the measurement on the scale, an accurate wall thickness measurement can be obtained.

Calipers are suitable for measuring thin materials and are widely utilized in industries such as manufacturing, construction, and quality control to ensure compliance with specifications and standards.

5. Eddy Current Testing (ECT)

Eddy Current Testing (ECT) is a non-destructive method used for measuring wall thickness. It relies on electromagnetic induction to assess the thickness of conductive materials. During ECT, a probe is moved across the material’s surface, generating magnetic fields. These fields create electrical currents, known as eddy currents, within the material.

Any variations in thickness affect the eddy currents, allowing the detection and measurement of wall thickness irregularities. ECT is commonly used in industries like aerospace, automotive, and manufacturing for quick and reliable thickness measurements in quality control and inspection processes.

6. Magnetic Induction

Magnetic Induction is a method used for measuring wall thickness. It operates based on the principles of electromagnetic induction to assess material thickness. In this technique, a magnetic field is generated and applied to the material under inspection.

Variations in thickness cause alterations in the magnetic field, which can be detected and correlated with the wall thickness. Magnetic Induction is particularly effective for measuring the thickness of materials that are not magnetic. This approach finds wide application in different industries to ensure the reliability and integrity of structural components.

7. Laser Measurement

Laser Measurement is a technique employed for measuring wall thickness. It utilizes laser technology to accurately determine the distance between the laser source and the material’s surface. By measuring this distance, an indirect measurement of the wall thickness can be obtained.

Laser Measurement is known for its precise and non-contact nature, making it suitable for a wide range of materials and applications. It finds common use in industries such as manufacturing, construction, and quality control, where accurate wall thickness measurements are crucial for ensuring product integrity and adherence to specifications.

What Is The Purpose of Wall Thickness Measurement?

The purpose of conducting wall thickness measurement testing is to:

1. Ensure adherence to design specifications, industry standards, and safety regulations.
2. Detect potential issues such as corrosion, erosion, thinning, or structural weaknesses.
3. Facilitate timely maintenance, repair, or replacement of components.
4. Safeguard the integrity, safety, and performance of the structure or material.
5. Provide accurate data for informed decision-making regarding maintenance, repair, or replacement actions.
6. Monitor and prevent degradation or failure of structural components.
7. Verify the quality and reliability of manufacturing processes.
8. Support quality control and assurance initiatives across various industries.
9. Enhance the longevity and dependability of structures and materials.
10. Optimize the efficient utilization of resources.

In conclusion, wall thickness measurement is a crucial factor that ensures the safety and durability of industrial piping systems. As discussed in this article, precise wall thickness assessments are particularly important in industries like oil and gas, power, and petrochemicals, where the strength of structures is of utmost importance.

By using accurate measurement techniques, piping inspectors can identify potential weaknesses, corrosion, and erosion, enabling them to make well-informed decisions regarding maintenance, repairs, or replacements.

As these industries continue to grow, the significance of wall thickness measurement in maintaining efficiency and reducing risks cannot be underestimated. Especially for piping inspectors, wall thickness measurement remains a crucial tool to help them decide further action for the overall equipment’s reliability and safety.

API 570 regulates wall thickness measurement in industrial piping inspections, ensuring safety and operational requirements are met. Inspectors follow the code to assess corrosion and erosion levels, considering the material, operating conditions, and system lifespan for informed decision-making.
